对象存储扩容

本例在新扩容的每个节点上创建12个 RGW 实例，2个节点共新增24个RGW实例，网关端口分别为100037-10060，网关名称分别为bucket37-bucket60。

扩容机器添加Monitor

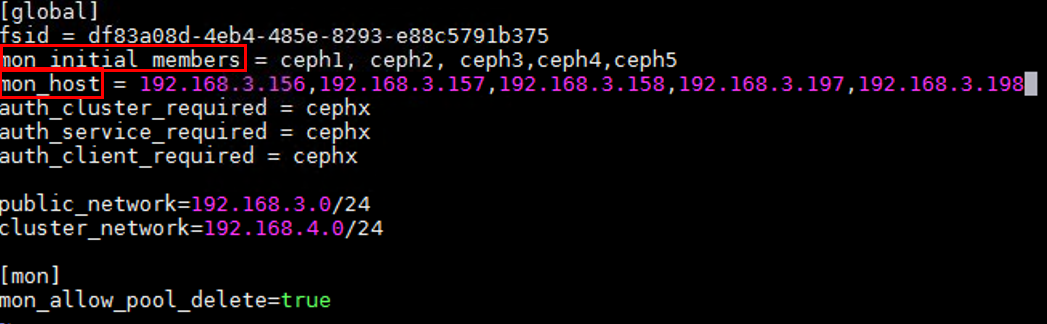

如果需要添加Monitor，如图修改ceph1的“/etc/ceph/ceph.conf”，在“mon_initial_members”和“mon_host”中添加ceph4和ceph5的IP地址。

  1. 编辑ceph.conf。
    1
2
3

    cd
/etc/ceph/
vim ceph.conf
    1. 将“mon_initial_members=ceph1,ceph2,ceph3”修改为“mon_initial_members=ceph1,ceph2,ceph3,ceph4,ceph5”。
    2. 将“mon_host=192.168.3.156,192.168.3.157,192.168.3.158”修改为“mon_host=192.168.3.156,192.168.3.157,192.168.3.158,192.168.3.197,192.168.3.198”。

  2. 将ceph.conf从ceph1节点推送至各个节点。
    1

    ceph-deploy --overwrite-conf admin ceph1 ceph2 ceph3 ceph4 ceph5
  3. 在ceph1创建monitor。
    1

    ceph-deploy mon create ceph4 ceph5
  4. 查看mon状态。
    1

    ceph mon stat

    若“mon stat”中出现扩容机器的信息，说明扩容进来的服务器创建Monitor成功。

（可选）删除Monitor

删除monitor对集群影响较大，一般需要提前规划好，如不需要，可以不用删除。

以删除Monitor ceph2和ceph3为例，需修改ceph1的“/etc/ceph/ceph.conf”文件中的ceph2和ceph3的信息，并将ceph.conf推送至各节点。

  1. 编辑ceph.conf。
    1
2
3

    cd
/etc/ceph/
vim ceph.conf

    将“mon_initial_members=ceph1,ceph2,ceph3,ceph4,ceph5”修改为“mon_initial_members=ceph1,ceph4,ceph5”。

    将“mon_host=192.168.3.156,192.168.3.157,192.168.3.158,192.168.3.197,192.168.3.198”修改为“mon_host=192.168.3.156,192.168.3.197,192.168.3.198”。

  2. 将ceph.conf从ceph1节点推送至各个节点。
    1

    ceph-deploy --overwrite-conf admin ceph1 ceph2 ceph3 ceph4 ceph5
  3. 删除monitor ceph2和ceph3。
    1

    ceph-deploy mon destroy ceph2 ceph3

准备ceph.conf文件

  1. 在ceph.conf文件中添加rgw实例的端口配置，在ceph1上编辑ceph.conf。
    1

    vim /etc/ceph/ceph.conf

      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190

    [global]
fsid = 4f238985-ad0a-4fc3-944b-da59ea3e65d7
mon_initial_members = ceph1, ceph2, ceph3,ceph4,ceph5
mon_host = 192.168.3.156,192.168.3.157,192.168.3.158，192.168.3.197 ，192.168.3.198
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network = 192.168.3.0/24
cluster_network = 192.168.3.0/24

[mon]
mon_allow_pool_delete = true

[client.rgw.bucket1]
rgw_frontends = civetweb port=10001
log file = /var/log/ceph/client.rgw.bucket1.log
[client.rgw.bucket2]
rgw_frontends = civetweb port=10002
log file = /var/log/ceph/client.rgw.bucket2.log
[client.rgw.bucket3]
rgw_frontends = civetweb port=10003
log file = /var/log/ceph/client.rgw.bucket3.log
[client.rgw.bucket4]
rgw_frontends = civetweb port=10004
log file = /var/log/ceph/client.rgw.bucket4.log
[client.rgw.bucket5]
rgw_frontends = civetweb port=10005
log file = /var/log/ceph/client.rgw.bucket5.log
[client.rgw.bucket6]
rgw_frontends = civetweb port=10006
log file = /var/log/ceph/client.rgw.bucket6.log
[client.rgw.bucket7]
rgw_frontends = civetweb port=10007
log file = /var/log/ceph/client.rgw.bucket7.log
[client.rgw.bucket8]
rgw_frontends = civetweb port=10008
log file = /var/log/ceph/client.rgw.bucket8.log
[client.rgw.bucket9]
rgw_frontends = civetweb port=10009
log file = /var/log/ceph/client.rgw.bucket9.log
[client.rgw.bucket10]
rgw_frontends = civetweb port=10010
log file = /var/log/ceph/client.rgw.bucket10.log
[client.rgw.bucket11]
rgw_frontends = civetweb port=10011
log file = /var/log/ceph/client.rgw.bucket11.log
[client.rgw.bucket12]
rgw_frontends = civetweb port=10012
log file = /var/log/ceph/client.rgw.bucket12.log
[client.rgw.bucket13]
rgw_frontends = civetweb port=10013
log file = /var/log/ceph/client.rgw.bucket13.log
[client.rgw.bucket14]
rgw_frontends = civetweb port=10014
log file = /var/log/ceph/client.rgw.bucket14.log
[client.rgw.bucket15]
rgw_frontends = civetweb port=10015
log file = /var/log/ceph/client.rgw.bucket15.log
[client.rgw.bucket16]
rgw_frontends = civetweb port=10016
log file = /var/log/ceph/client.rgw.bucket16.log
[client.rgw.bucket17]
rgw_frontends = civetweb port=10017
log file = /var/log/ceph/client.rgw.bucket17.log
[client.rgw.bucket18]
rgw_frontends = civetweb port=10018
log file = /var/log/ceph/client.rgw.bucket18.log
[client.rgw.bucket19]
rgw_frontends = civetweb port=10019
log file = /var/log/ceph/client.rgw.bucket19.log
[client.rgw.bucket20]
rgw_frontends = civetweb port=10020
log file = /var/log/ceph/client.rgw.bucket20.log
[client.rgw.bucket21]
rgw_frontends = civetweb port=10021
log file = /var/log/ceph/client.rgw.bucket21.log
[client.rgw.bucket22]
rgw_frontends = civetweb port=10022
log file = /var/log/ceph/client.rgw.bucket22.log
[client.rgw.bucket23]
rgw_frontends = civetweb port=10023
log file = /var/log/ceph/client.rgw.bucket23.log
[client.rgw.bucket24]
rgw_frontends = civetweb port=10024
log file = /var/log/ceph/client.rgw.bucket24.log
[client.rgw.bucket25]
rgw_frontends = civetweb port=10025
log file = /var/log/ceph/client.rgw.bucket25.log
[client.rgw.bucket26]
rgw_frontends = civetweb port=10026
log file = /var/log/ceph/client.rgw.bucket26.log
[client.rgw.bucket27]
rgw_frontends = civetweb port=10027
log file = /var/log/ceph/client.rgw.bucket27.log
[client.rgw.bucket28]
rgw_frontends = civetweb port=10028
log file = /var/log/ceph/client.rgw.bucket28.log
[client.rgw.bucket29]
rgw_frontends = civetweb port=10029
log file = /var/log/ceph/client.rgw.bucket29.log
[client.rgw.bucket30]
rgw_frontends = civetweb port=10030
log file = /var/log/ceph/client.rgw.bucket30.log
[client.rgw.bucket31]
rgw_frontends = civetweb port=10031
log file = /var/log/ceph/client.rgw.bucket31.log
[client.rgw.bucket32]
rgw_frontends = civetweb port=10032
log file = /var/log/ceph/client.rgw.bucket32.log
[client.rgw.bucket33]
rgw_frontends = civetweb port=10033
log file = /var/log/ceph/client.rgw.bucket33.log
[client.rgw.bucket34]
rgw_frontends = civetweb port=10034
log file = /var/log/ceph/client.rgw.bucket34.log
[client.rgw.bucket35]
rgw_frontends = civetweb port=10035
log file = /var/log/ceph/client.rgw.bucket35.log
[client.rgw.bucket36]
rgw_frontends = civetweb port=10036
log file = /var/log/ceph/client.rgw.bucket36.log
[client.rgw.bucket37]
rgw_frontends = civetweb port=10037
log file = /var/log/ceph/client.rgw.bucket37.log
[client.rgw.bucket38]
rgw_frontends = civetweb port=10038
log file = /var/log/ceph/client.rgw.bucket38.log
[client.rgw.bucket39]
rgw_frontends = civetweb port=10039
log file = /var/log/ceph/client.rgw.bucket39.log
[client.rgw.bucket41]
rgw_frontends = civetweb port=10041
log file = /var/log/ceph/client.rgw.bucket41.log
[client.rgw.bucket42]
rgw_frontends = civetweb port=10042
log file = /var/log/ceph/client.rgw.bucket42.log
[client.rgw.bucket43]
rgw_frontends = civetweb port=10043
log file = /var/log/ceph/client.rgw.bucket43.log
[client.rgw.bucket44]
rgw_frontends = civetweb port=10044
log file = /var/log/ceph/client.rgw.bucket44.log
[client.rgw.bucket45]
rgw_frontends = civetweb port=10045
log file = /var/log/ceph/client.rgw.bucket45.log
[client.rgw.bucket46]
rgw_frontends = civetweb port=10046
log file = /var/log/ceph/client.rgw.bucket46.log
[client.rgw.bucket47]
rgw_frontends = civetweb port=10047
log file = /var/log/ceph/client.rgw.bucket47.log
[client.rgw.bucket48]
rgw_frontends = civetweb port=10048
log file = /var/log/ceph/client.rgw.bucket48.log
[client.rgw.bucket49]
rgw_frontends = civetweb port=10049
log file = /var/log/ceph/client.rgw.bucket49.log
[client.rgw.bucket50]
rgw_frontends = civetweb port=10050
log file = /var/log/ceph/client.rgw.bucket50.log
[client.rgw.bucket51]
rgw_frontends = civetweb port=10051
log file = /var/log/ceph/client.rgw.bucket51.log
[client.rgw.bucket52]
rgw_frontends = civetweb port=10052
log file = /var/log/ceph/client.rgw.bucket52.log
[client.rgw.bucket53]
rgw_frontends = civetweb port=10053
log file = /var/log/ceph/client.rgw.bucket53.log
[client.rgw.bucket54]
rgw_frontends = civetweb port=10054
log file = /var/log/ceph/client.rgw.bucket54.log
[client.rgw.bucket55]
rgw_frontends = civetweb port=10055
log file = /var/log/ceph/client.rgw.bucket55.log
[client.rgw.bucket56]
rgw_frontends = civetweb port=10056
log file = /var/log/ceph/client.rgw.bucket56.log
[client.rgw.bucket57]
rgw_frontends = civetweb port=10057
log file = /var/log/ceph/client.rgw.bucket57.log
[client.rgw.bucket58]
rgw_frontends = civetweb port=10058
log file = /var/log/ceph/client.rgw.bucket58.log
[client.rgw.bucket59]
rgw_frontends = civetweb port=10059
log file = /var/log/ceph/client.rgw.bucket59.log
[client.rgw.bucket60]
rgw_frontends = civetweb port=10060
log file = /var/log/ceph/client.rgw.bucket60.log
  2. 在所有集群节点上同步配置文件，在ceph1上执行：
    1

    ceph-deploy --overwrite-conf admin ceph1 ceph2 ceph3 ceph4 ceph5

新增RGW实例

  1. 创建RGW实例，在主节点ceph1上执行以下命令：
    1
2

    for i in {37..48};do ceph-deploy rgw create ceph4:bucket$i;done
for i in {49..60};do ceph-deploy rgw create ceph5:bucket$i;done
  2. 查看60个RGW进程是否在线。
    1

    ceph -s

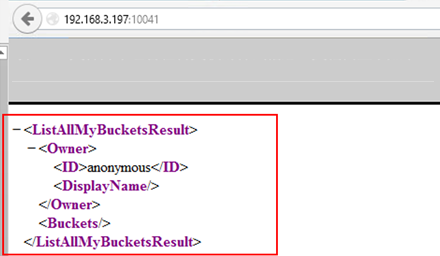

  3. 使用curl或者web节点登录验证，如下图所示。

    至此网关服务创建成功。

部署MGR

为扩容的节点ceph4和ceph5创建MGR。

1

ceph-deploy mgr create ceph4 ceph5

部署OSD

给扩容进来的服务器创建OSD，由于每台服务器有12块硬盘，执行如下命令：

1
2
3
4
5
6
7
8

for i in {a..l}
do
ceph-deploy osd create ceph4 --data /dev/sd${i}
done
for i in {a..l}
do
ceph-deploy osd create ceph5 --data /dev/sd${i}
done

配置存储池

  1. 查看存储池信息。
    1

    ceph osd lspools

  2. 修改相应的“pg pgpnum”和“pgnum”.

    pg的计算规则如下：

    Total PGs = ((Total_number_of_OSD * 100) / max_replication_count) / pool_count

    因此按照该环境修改“pgnum”和“pgpnum”如下：
    1
2
3
4

    ceph osd pool set default.rgw.buckets.data pg_num 2048
ceph osd pool set default.rgw.buckets.data pgp_num 2048
ceph osd pool set default.rgw.buckets.index pg_num 256
ceph osd pool set default.rgw.buckets.index pgp_num 256

验证扩容

扩容后，Ceph会通过迁移来自其他OSD的一些pg到新添进的OSD，再次平衡数据。

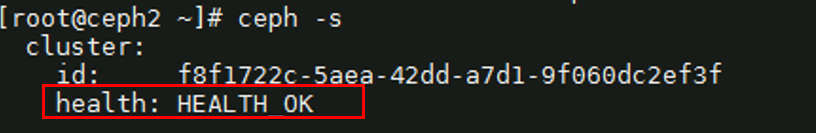

  1. 确认数据迁移结束后集群是否恢复健康。
    1

    ceph -s

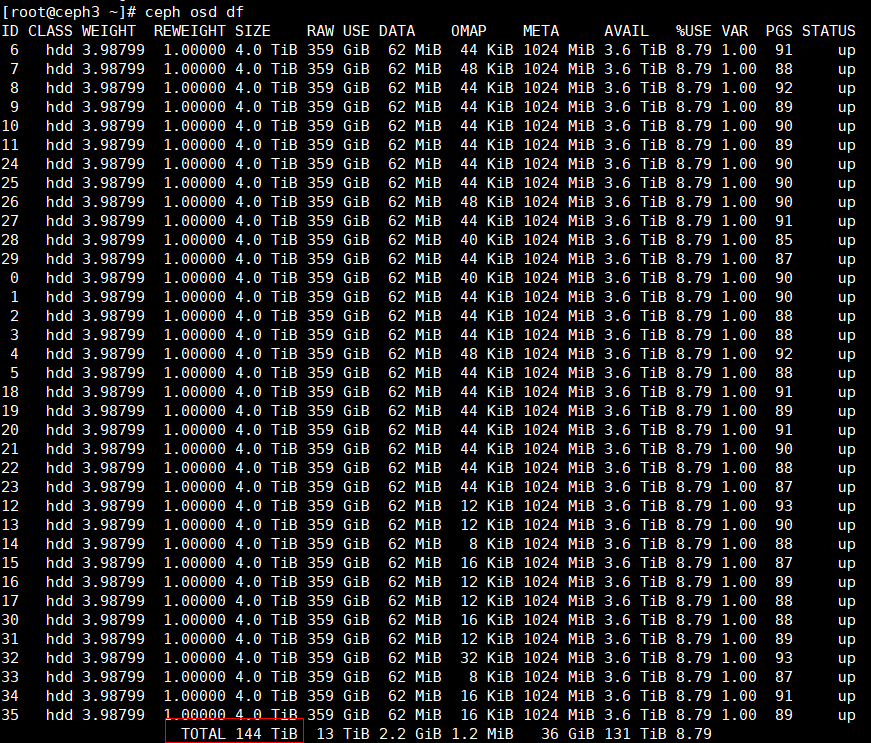

  2. 确定集群的存储容量是否增加。
    1

    ceph osd df
