构建机器学习Spark算法库适配代码

构建机器学习算法加速库适配代码Spark-ml-algo-lib过程如下。此过程以适配Spark 2.3.2代码的构建为例，适配Spark2.4.6代码与之相似，可参考下面过程。：

  1. 下载Spark 2.3.2源码zip包到“/opt/”目录并解压，得到Spark源码目录“/opt/spark-2.3.2”。

    获取地址：https://github.com/apache/spark/archive/v2.3.2.zip。

    1
2

    wget https://github.com/apache/spark/archive/v2.3.2.zip
unzip v2.3.2.zip
  2. 获取Breeze 0.13.1源码zip包到“/opt/”目录并解压，得到Breeze源码目录“/opt/breeze-releases-v0.13.1”。

    获取地址：https://github.com/scalanlp/breeze/archive/releases/v0.13.1.zip

    1
2

    wget https://github.com/scalanlp/breeze/archive/releases/v0.13.1.zip
unzip v0.13.1.zip
  3. 获取xgboost 1.1.0源码包到“/opt/”目录并解压，得到xgboost源码目录“/opt/xgboost-1.1.0”。
    1
2

    wget https://github.com/dmlc/xgboost/archive/refs/tags/v1.1.0.zip
unzip xgboost-1.1.0.zip
  4. 获取cub源码包到“/opt/xgboost-1.1.0”目录中并解压，得到cub源码目录“/opt/xgboost-1.1.0/cub-b20808b1b04ec3d6a625e51fbc1eb76f337754ad”，然后将“/opt/xgboost-1.1.0/cub”目录删除，删除后将“/opt/xgboost-1.1.0/cub-b20808b1b04ec3d6a625e51fbc1eb76f337754ad”目录重命名为“/opt/xgboost-1.1.0/cub”。
    1
2
3
4

    wget https://github.com/NVlabs/cub/archive/b20808b1b04ec3d6a625e51fbc1eb76f337754ad.zip
unzip cub-b20808b1b04ec3d6a625e51fbc1eb76f337754ad.zip
rm -rf cub
mv cub-b20808b1b04ec3d6a625e51fbc1eb76f337754ad cub
  5. 获取dmlc-core源码包到“/opt/xgboost-1.1.0”目录中并解压，得到dmlc-core源码目录“/opt/xgboost-1.1.0/dmlc-core-5df8305fe699d3b503d10c60a231ab0223142407”，然后将“/opt/xgboost-1.1.0/dmlc-core”目录删除，删除后将“/opt/xgboost-1.1.0/dmlc-core-5df8305fe699d3b503d10c60a231ab0223142407”目录重命名为“/opt/xgboost-1.1.0/dmlc-core”。
    1
2
3
4

    wget https://github.com/dmlc/dmlc-core/archive/5df8305fe699d3b503d10c60a231ab0223142407.zip
unzip dmlc-core-5df8305fe699d3b503d10c60a231ab0223142407.zip
rm -rf dmlc-core
mv dmlc-core-5df8305fe699d3b503d10c60a231ab0223142407 dmlc-core
  6. 获取rabit源码包到“/opt/xgboost-1.1.0”目录中并解压，得到rabit源码目录“/opt/xgboost-1.1.0/rabit-4fb34a008db6437c84d1877635064e09a55c8553”，然后将“/opt/xgboost-1.1.0/rabit”目录删除，删除后将“/opt/xgboost-1.1.0/rabit-4fb34a008db6437c84d1877635064e09a55c8553”目录重命名为“/opt/xgboost-1.1.0/rabit”。
    1
2
3
4

    wget https://github.com/dmlc/rabit/archive/4fb34a008db6437c84d1877635064e09a55c8553.zip
unzip rabit-4fb34a008db6437c84d1877635064e09a55c8553.zip
rm -rf rabit
mv rabit-4fb34a008db6437c84d1877635064e09a55c8553 rabit

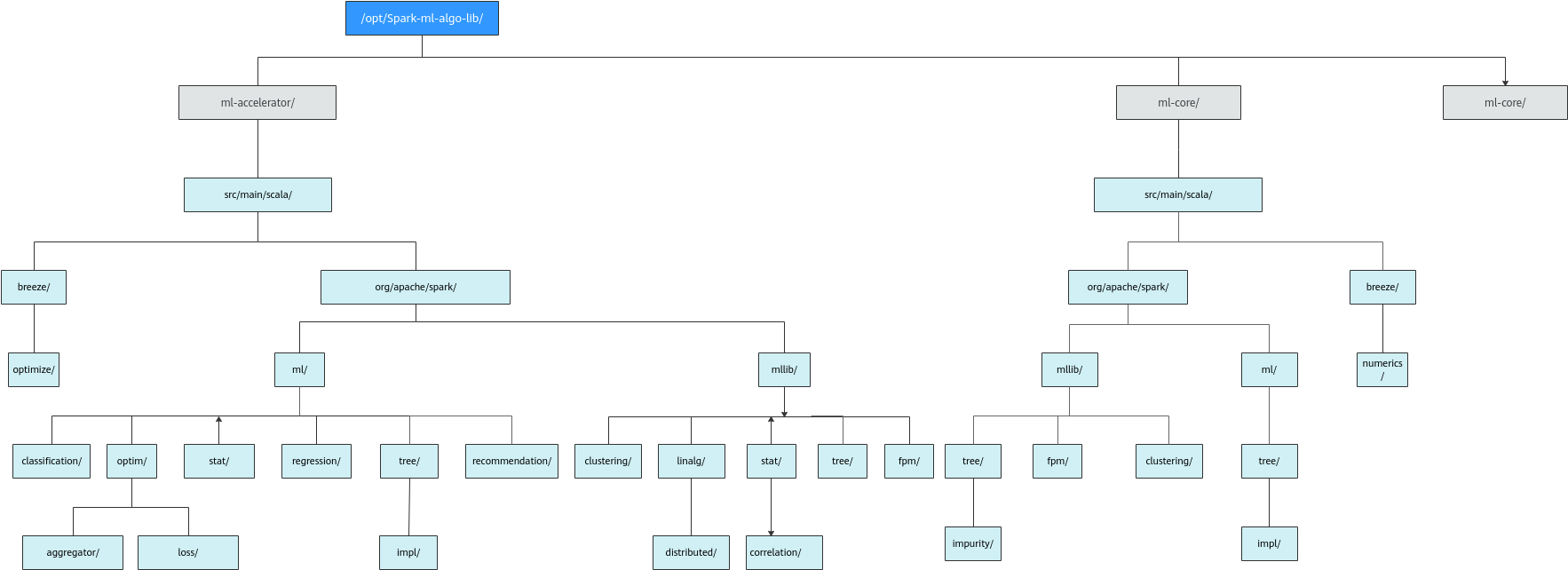

  7. 在“/opt/”目录下建立一个层级为如下所示的目录的工程Spark-ml-algo-lib。

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

    cd /opt/
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/breeze/optimize
mkdir -p Spark-ml-algo-lib/ml-core/src/main/scala/breeze/numerics
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/classification
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/optim/aggregator
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/optim/loss
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/recommendation
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/regression
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/stat
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/tree/impl
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/clustering
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/fpm
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/linalg/distributed
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/stat/correlation
mkdir -p Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/tree
mkdir -p Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/ml/tree/impl
mkdir -p Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/clustering
mkdir -p Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/fpm
mkdir -p Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/tree/impurity
cp xgboost-1.1.0 Spark-ml-algo-lib/ml-xgboost
  8. 按照表1、表2的对应关系将Spark 2.3.2和Breeze 0.13.1中的对应原文件复制到Spark-ml-algo-lib目录，表格左边两列是目标目录和文件名，右边两列的是需要移动的原文件目录及文件名。按照表表3将xgboost原生的代码中不需要的部分删除，然后将剩下的代码拷贝至“Spark-ml-algo-lib/ml-xgboost”目录下。按照表4将部分文件夹修改为所需要的名字，第一列为当前目录的名字，第二列为修改后目录的名字。由于需要复制的文件很多，操作的代码只给出两个示例。

    有些文件在复制到目标文件夹后需要改名。

    操作命令示例：
    1

    cp /opt/spark-2.3.2/mllib/src/main/scala/org/apache/spark/ml/classification/GBTClassifier.scala /opt/Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/ml/classification/GBTClassifier.scala

    1

    cp /opt/breeze-releases-v0.13.1/math/src/main/scala/breeze/optimize/FirstOrderMinimizer.scala /opt/Bigdata_ML_ALGO_ACC_LIB/ml-accelerator/src/main/scala/breeze/optimize/FirstOrderMinimizerX.scala
    表1 Spark中需要放入Spark-ml-algo-lib工程的文件

    Spark-ml-algo-lib工程目录

    Spark-ml-algo-lib工程文件名

    Spark原文件所在目录

    Spark原文件名

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/classification/

    GBTClassifier.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/classification/

    GBTClassifier.scala

    LinearSVC.scala

    LinearSVC.scala

    RandomForestClassifier.scala

    RandomForestClassifier.scala

    DecisionTreeClassifier.scala

    DecisionTreeClassifier.scala

    LogisticRegression.scala

    LogisticRegression.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/optim/aggregator/

    DifferentiableLossAggregatorX.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/optim/aggregator/

    DifferentiableLossAggregator.scala

    HingeAggregatorX.scala

    HingeAggregator.scala

    HuberAggregatorX.scala

    HuberAggregator.scala

    LeastSquaresAggregatorX.scala

    LeastSquaresAggregator.scala

    LogisticAggregatorX.scala

    LogisticAggregator.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/optim/loss/

    RDDLossFunctionX.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/optim/loss/

    RDDLossFunction.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/recommendation/

    ALS.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/recommendation

    ALS.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/regression/

    DecisionTreeRegressor.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/optim/loss/

    DecisionTreeRegressor.scala

    GBTRegressor.scala

    GBTRegressor.scala

    LinearRegression.scala

    LinearRegression.scala

    RandomForestRegressor.scala

    RandomForestRegressor.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/stat/

    Correlation.scala

    spark-2.3.2/mllib/src/main/scalaorg/apache/spark/ml/stat/

    Correlation.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/tree/impl/

    GradientBoostedTrees.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/tree/impl/

    GradientBoostedTrees.scala

    NodeIdCache.scala

    NodeIdCache.scala

    RandomForest.scala

    RandomForest.scala

    RandomForest4GBDTX.scala

    RandomForest.scala

    RandomForestRaw.scala

    RandomForest.scala

    DecisionForest.scala

    RandomForest.scala

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/org/apache/spark/ml/tree/

    treeParams.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/tree/

    treeParams.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/clustering/

    KMACCm.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/mllib/clustering

    KMeans.scala

    KMeans.scala

    KMeans.scala

    LDA.scala

    LDA.scala

    LDAOptimizer.scala

    LDAOptimizer.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/fpm/

    PrefixSpan.scala

    spark-2.3.2\mllib\src\main\scala\org\apache\spark\mllib\fpm

    PrefixSpan.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/linalg/distributed/

    RowMatrix.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/mllib/linalg/distributed

    RowMatrix.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/linalg/

    EigenValueDecomposition.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/mllib/linalg

    EigenValueDecomposition.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/stat/correlation/

    Correlation.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/mllib/stat/correlation/

    Correlation.scala

    PearsonCorrelation.scala

    PearsonCorrelation.scala

    SpearmanCorrelation.scala

    SpearmanCorrelation.scala

    Spark-ml-algo-lib/ml-accelerator/src/main/scala/org/apache/spark/mllib/tree/

    DecisionTree.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/mllib/tree

    DecisionTree.scala

    Spark-ml-algo-lib/ml-core/ src/main/scala/org/apache/spark/ml/tree/

    Node.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/tree/

    Node.scala

    Split.scala

    Split.scala

    Spark-ml-algo-lib/ml-core/ src/main/scala/org/apache/spark/ml/tree/impl

    BaggedPoint.scala

    spark-2.3.2/mllib/src/main/scala/org/ apache/spark/ml/tree/impl/

    BaggedPoint.scala

    DTFeatureStatsAggregator.scala

    DTStatsAggregator.scala

    DTStatsAggregator.scala

    DTStatsAggregator.scala

    GradientBoostedTreesCore.scala

    RandomForest.scala

    TreePointX.scala

    TreePoint.scala

    TreePointY.scala

    TreePoint.scala

    Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/clustering/

    LDAUtilsX.scala

    spark-2.3.2/mllib/src/main/scala/org/apache/spark/mllib/clustering

    LDAUtils.scala

    OnlineLDAOptimizerXObj.scala

    LDAOptimizer.scala

    Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/fpm/

    LocalPrefixSpan.scala

    spark-2.3.2/mllib/src/main/scala/org/apache/spark/mllib/fpm/

    LocalPrefixSpan.scala

    PrefixSpanBase.scal

    PrefixSpan.scala

    Spark-ml-algo-lib/ml-core/src/main/scala/org/apache/spark/mllib/tree/impurity/

    Entropy.scala

    spark-2.3.2/mllib/src/main/scala/org/apache/spark/mllib/tree/impurity

    Entropy.scala

    Gini.scala

    Gini.scala

    Impurities.scala

    Impurities.scala

    Impurity.scala

    Impurity.scala

    Variance.scala

    Variance.scala
    表2 Breeze中需要放入Spark-ml-algo-lib工程的文件

    Spark-ml-algo-lib工程目录

    Spark-ml-algo-lib工程文件名

    Breeze原文件所在目录

    Breeze原文件名

    Spark-ml-algo-lib/ml-accelerator/ src/main/scala/breeze/optimize

    FirstOrderMinimizerX.scala

    breeze-releases-v0.13.1/math/src/ main/scala/breeze/optimize

    FirstOrderMinimizer.scala

    LBFGSX.scala

    LBFGS.scala

    OWLQNX.scala

    OWLQN.scala

    Spark-ml-algo-lib/ml-core/ src/main/scala/breeze/numerics/

    DigammaX.scala

    breeze-releases-v0.13.1/math/src/main/scala/breeze/numerics/

    package.scala
    表3 xgboost原生代码中需要删除的文件或目录

    需要删除的文件或目录

    xgboost-1.1.0/.github

    xgboost-1.1.0/cub/.settings

    xgboost-1.1.0/cub/.project

    xgboost-1.1.0/dmlc-core/.github

    xgboost-1.1.0/dmlc-core/make/config.mk

    xgboost-1.1.0/dmlc-core/test/unittest/sample.rec

    xgboost-1.1.0/doc/_static

    xgboost-1.1.0/rabit/lib

    xgboost-1.1.0/R-package/data

    xgboost-1.1.0/.gitignore
    表4 需要修改名字的目录

    Spark-ml-algo-lib工程目录

    修改后目录的名字

    Spark-ml-algo-lib/ml-xgboost/jvm-package/xgboost4j

    Spark-ml-algo-lib/ml-xgboost/jvm-package/boostkit-xgboost4j

    Spark-ml-algo-lib/ml-xgboost/jvm-package/xgboost4j-example

    Spark-ml-algo-lib/ml-xgboost/jvm-package/boostkit-xgboost4j-example

    Spark-ml-algo-lib/ml-xgboost/jvm-package/xgboost4j-flink

    Spark-ml-algo-lib/ml-xgboost/jvm-package/boostkit-xgboost4j-flink

    Spark-ml-algo-lib/ml-xgboost/jvm-package/xgboost4j-spark

    Spark-ml-algo-lib/ml-xgboost/jvm-package/boostkit-xgboost4j-spark

    Spark-ml-algo-lib/ml-xgboost/jvm-package/xgboost4j-tester

    Spark-ml-algo-lib/ml-xgboost/jvm-package/boostkit-xgboost4j-tester

    完成8后，Spark-ml-algo-lib工程的目录结构及目录下的文件如下：

    Spark-ml-algo-lib
├── ml-accelerator
│   └── src
│       └── main
│           └── scala
│               ├── breeze
│               │   └── optimize
│               │       ├── FirstOrderMinimizeXr.scala
│               │       ├── LBFGSX.scala
│               │       └── OWLQNX.scala
│               └── org
│                   └── apache
│                       └── spark
│                           ├── ml
│                           │   ├── classification
│                           │   │   ├── DecisionTreeClassifier.scala
│                           │   │   ├── GBTClassifier.scala
│                           │   │   ├── LinearSVC.scala
│                           │   │   ├── LogisticRegression.scala
│                           │   │   └── RandomForestClassifier.scala
│                           │   ├── optim
│                           │   │   ├── aggregator
│                           │   │   │   ├── DifferentiableLossAggregatorX.scala
│                           │   │   │   ├── HingeAggregatorX.scala
│                           │   │   │   ├── HuberAggregatorX.scala
│                           │   │   │   ├── LeastSquaresAggregatorX.scala
│                           │   │   │   └── LogisticAggregatorX.scala
│                           │   │   └── loss
│                           │   │       └── RDDLossFunctionX.scala
│                           │   ├── recommendation
│                           │   │   └── ALS.scala
│                           │   ├── regression
│                           │   │   ├── DecisionTreeRegressor.scala
│                           │   │   ├── GBTRegressor.scala
│                           │   │   ├── LinearRegression.scala
│                           │   │   └── RandomForestRegressor.scala
│                           │   ├── stat
│                           │   │   └── Correlation.scala
│                           │   └── tree
│                           │       ├── impl
│                           │       │   ├── DecisionForest.scala
│                           │       │   ├── GradientBoostedTrees.scala
│                           │       │   ├── NodeIdCache.scala
│                           │       │   ├── RandomForest4GBDTX.scala
│                           │       │   ├── RandomForestRaw.scala
│                           │       │   └── RandomForest.scala
│                           │       └── treeParams.scala
│                           └── mllib
│                               ├── clustering
│                               │   ├── KMACCm.scala
│                               │   ├── KMeans.scala
│                               │   ├── LDAOptimizer.scala
│                               │   └── LDA.scala
│                               ├── fpm
│                               │   └── PrefixSpan.scala
│                               ├── linalg
│                               │   ├── distributed
│                               │   │   └── RowMatrix.scala
│                               │   └── EigenValueDecomposition.scala
│                               ├── stat
│                               │   └── correlation
│                               │       ├── Correlation.scala
│                               │       ├── PearsonCorrelation.scala
│                               │       └── SpearmanCorrelation.scala
│                               └── tree
│                                   └── DecisionTree.scala
├── ml-core
│   └── src
│       └── main
│           └── scala
│               ├── breeze
│               │   └── numerics
│               │       └── DigammaX.scala
│               └── org
│                   └── apache
│                       └── spark
│                           ├── ml
│                           │   └── tree
│                           │       ├── impl
│                           │       │   ├── BaggedPoint.scala
│                           │       │   ├── DTFeatureStatsAggregator.scala
│                           │       │   ├── DTStatsAggregator.scala
│                           │       │   ├── GradientBoostedTreesCore.scala
│                           │       │   ├── TreePointX.scala
│                           │       │   └── TreePointY.scala
│                           │       ├── Node.scala
│                           │       └── Split.scala
│                           └── mllib
│                               ├── clustering
│                               │   ├── LDAUtilsX.scala
│                               │   └── OnlineLDAOptimizerXObj.scala
│                               ├── fpm
│                               │   ├── LocalPrefixSpan.scala
│                               │   └── PrefixSpanBase.scala
│                               └── tree
│                                   └── impurity
│                                       ├── Entropy.scala
│                                       ├── Gini.scala
│                                       ├── Impurities.scala
│                                       ├── Impurity.scala
│                                       └── Variance.scala
└── ml-xgboost
    └──.../...
  9. 下载Spark-ml-algo-lib.patch到“/opt/Spark-ml-algo-lib/”目录下，将patch解压后并入Spark-ml-algo-lib，得到完整的机器学习算法加速库适配代码Spark-ml-algo-lib。
    1
2
3

    cd /opt/Spark-ml-algo-lib
wget https://github.com/kunpengcompute/Spark-ml-algo-lib/releases/download/v1.3.0/Spark-ml-algo-lib.patch
patch -p1 < Spark-ml-algo-lib.patch
    完整的机器学习算法加速库适配代码Spark-ml-algo-lib的目录及目录下的文件如下：
    Spark-ml-algo-lib
├── LICENSE
├── ml-accelerator
│   ├── pom.xml
│   └── src
│       └── main
│           └── scala
│               ├── breeze
│               │   └── optimize
│               │       ├── FirstOrderMinimizerX.scala
│               │       ├── LBFGSX.scala
│               │       └── OWLQNX.scala
│               └── org
│                   └── apache
│                       └── spark
│                           ├── ml
│                           │   ├── classification
│                           │   │   ├── DecisionTreeClassifier.scala
│                           │   │   ├── GBTClassifier.scala
│                           │   │   ├── LinearSVC.scala
│                           │   │   ├── LogisticRegression.scala
│                           │   │   └── RandomForestClassifier.scala
│                           │   ├── optim
│                           │   │   ├── aggregator
│                           │   │   │   ├── DifferentiableLossAggregatorX.scala
│                           │   │   │   ├── HingeAggregatorX.scala
│                           │   │   │   ├── HuberAggregatorX.scala
│                           │   │   │   ├── LeastSquaresAggregatorX.scala
│                           │   │   │   └── LogisticAggregatorX.scala
│                           │   │   └── loss
│                           │   │       └── RDDLossFunctionX.scala
│                           │   ├── recommendation
│                           │   │   └── ALS.scala
│                           │   ├── regression
│                           │   │   ├── DecisionTreeRegressor.scala
│                           │   │   ├── GBTRegressor.scala
│                           │   │   ├── LinearRegression.scala
│                           │   │   └── RandomForestRegressor.scala
│                           │   ├── stat
│                           │   │   └── Correlation.scala
│                           │   └── tree
│                           │       ├── impl
│                           │       │   ├── DecisionForest.scala
│                           │       │   ├── GradientBoostedTrees.scala
│                           │       │   ├── NodeIdCache.scala
│                           │       │   ├── RandomForest4GBDTX.scala
│                           │       │   ├── RandomForestRaw.scala
│                           │       │   └── RandomForest.scala
│                           │       └── treeParams.scala
│                           └── mllib
│                               ├── clustering
│                               │   ├── KMACCm.scala
│                               │   ├── KMeans.scala
│                               │   ├── LDAOptimizer.scala
│                               │   └── LDA.scala
│                               ├── fpm
│                               │   └── PrefixSpan.scala
│                               ├── linalg
│                               │   ├── distributed
│                               │   │   └── RowMatrix.scala
│                               │   └── EigenValueDecomposition.scala
│                               ├── stat
│                               │   └── correlation
│                               │        ├── Correlation.scala
│                               │        ├── PearsonCorrelation.scala
│                               │        └── SpearmanCorrelation.scala
│                               └── tree
│                                   └── DecisionTree.scala
├── ml-core
│   ├── pom.xml
│   └── src
│       └── main
│           └── scala
│               ├── breeze
│               │   └── numerics
│               │       └── DigammaX.scala
│               └── org
│                   └── apache
│                       └── spark
│                           ├── ml
│                           │   └── tree
│                           │       ├── impl
│                           │       │   ├── BaggedPoint.scala
│                           │       │   ├── DTFeatureStatsAggregator.scala
│                           │       │   ├── DTStatsAggregator.scala
│                           │       │   ├── GradientBoostedTreesCore.scala
│                           │       │   ├── TreePointX.scala
│                           │       │   └── TreePointY.scala
│                           │       ├── Node.scala
│                           │       └── Split.scala
│                           └── mllib
│                               ├── clustering
│                               │   ├── LDAUtilsX.scala
│                               │   └── OnlineLDAOptimizerXObj.scala
│                               ├── fpm
│                               │   ├── LocalPrefixSpan.scala
│                               │   └── PrefixSpanBase.scala
│                               └── tree
│                                   └── impurity
│                                       ├── Entropy.scala
│                                       ├── Gini.scala
│                                       ├── Impurities.scala
│                                       ├── Impurity.scala
│                                       └── Variance.scala
├── ml-kernel-client
│   ├── pom.xml
│   └── src
│       └── main
│           └── scala
│               ├── breeze
│               │   ├── linalg
│               │   │   ├── blas
│               │   │   │   ├── Dgemv.scala
│               │   │   │   ├── Gramian.scala
│               │   │   │   └── YTYUtils.scala
│               │   │   ├── DenseMatrixUtil.scala
│               │   │   ├── DenseVectorUtil.scala
│               │   │   └── lapack
│               │   │       └── EigenDecomposition.scala
│               │   └── optimize
│               │       ├── ACC.scala
│               │       ├── LBFGSL.scala
│               │       └── OWLQNL.scala
│               └── org
│                   └── apache
│                       └── spark
│                           ├── ml
│                           │   ├── neighbors
│                           │   │   ├── KNN.scala
│                           │   │   └── KNNUtils.scala
│                           │   ├── recommendation
│                           │   │   └── ALSUtils.scala
│                           │   ├── StaticUtils.scala
│                           │   └── tree
│                           │       └── impl
│                           │           ├── DTUtils.scala
│                           │           ├── GradientBoostedTreesUtil.scala
│                           │           └── RFUtils.scala
│                           ├── mllib
│                           │   └── fpm
│                           │       └── PrefixSpanUtils.scala
│                           ├── mllib.clustering
│                           │   ├── KmeansUtil.scala
│                           │   └── LDAUtilsXOpt.scala
│                           └── mllib.linalg.distributed
│                               └── RowMatrixUtil.scala
├── ml-kernel-client-core
│   ├── pom.xml
│   └── src
│       └── main
│           └── scala
│               └── org
│                   └── apache
│                       └── spark
│                           └── mllib
│                               ├── clustering
│                               │   └── GammaX.scala
│                               └── fpm
│                                   └── LocalPrefixSpanUtils.scala
├── ml-xgboost
│   └── .../...
├── pom.xml
├── README.md
└── scalastyle-config.xml
父主题： 参考
